Technology summary

주식회사 이노윌은 열전달 기기 전문 제작 업체입니다.

Innowill specializes in manufacturing heat transfer equipment.

이미지명

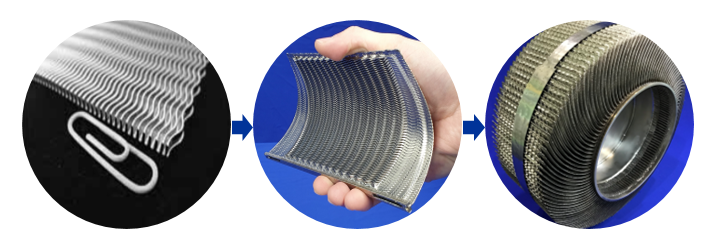

2005년 설립한 이래 특히 고종횡비의 미세 채널 주름 핀을 이용하여 모든 전열면을 주전열면으로 하는 원통형, 박스형 Primary Surface Type 열교환기인 Hi-Prime®를 주로 개발/생산해왔습니다. 최근에는 에칭판과 핀을 함께 사용하는 하이브리드형 열교환기, 미세 채널을 갖는 GTL 반응기 등을 개발하는데 성공하였으며, 고온 폐열회수에 효과적인 plate-fin type 열교환기인 BrazeWel® 열교환기 및 항공분야에 특화된 aluminum brazed type의 열교환기 제작에도 참여하고 있습니다.
Since our foundation in 2005, Innowill has developed and produced cylindrical and hexahedron primary surface heat exchangers, all of whose heat transfer surfaces are primary ones by using high aspect ratio microchannel corrugated fins. Recently, we succeeded in developing hybrid heat exchangers utilizing both etching plates and fins as well as GTL reactors with microchannels. We have developed plate-fin type BrazeWel® heat exchanger and also participated in producing aircraft heat exchangers which are required to become smaller and lighter.

이노윌은 열교환기, 반응기 분야에서 지식과 경험이 풍부한 석박사급 인력과 함께, 반응기 내부에서 일어나는 유동 및 열전달 현상의 해석 기술은 물론 열교환기를 시험하고 분석하는 기술을 보유하고 있습니다. 다양한 주름핀 전열면의 반복된 실험 결과를 축적하여 실험식의 형태로 유도하여 사용하며, 이를 시뮬레이션 해석 결과와 함께 열교환기의 3D 설계에 반영함으로써 보다 우수한 성능과 신뢰성을 갖춘 제품을 생산하고 있습니다.
Innowill works with experienced researchers armed with expertise in heat exchangers and reactors and has techniques to analyze heat transfer and fluid flow inside reactors and to test and examine heat exchangers. From accumulated results of testing various corrugated fins, we induce empirical formulas. These formulas and simulation results are reflected in 3D designs of heat exchangers, leading to high performance and reliable products.

한편 이노윌의 열교환기는 국내에서 유일하게 0.1mm의 스레인레스 박판을 성형한 미세 주름 핀으로 제작됩니다. 0.1mm의 박판으로부터 열교환기를 제작하는 과정은 매우 험난하며 최고 수준의 가공 기술이 필요합니다. 이노윌은 박판으로부터 미세 주름 핀을 성형할 수 있는 전용 장비를 갖추고 원하는 형상의 주름 핀 시트를 자체 생산하며, 성형된 시트들은 제품에 따라 GTA(Gas Tungsten Arc) 용접이나 레이저 용접, 또는 브레이징과 용접이 혼합된 공정으로 제작됩니다. 이노윌은 각 공정에 정통한 숙련된 인력들을 확보하고 있으며 수많은 제작에서 축적된 경험과 노하우를 보유하고 있습니다.
Innowill is the only heat exchanger producer which uses 0.1 millimeter stainless corrugated fins. Making heat exchangers from 0.1 millimeter plate is a very complicated and sophisticated process and requires state-of-art processing technology. Innowill has special equipment that molds delicate corrugated fins from thin plates into any required shapes. These sheets are manufactured by gas tungsten arc welding, laser welding or a combination of brazing and welding. We have experienced experts in each process in addition to know-how and experience accumulated from producing numerous products.

이미지명

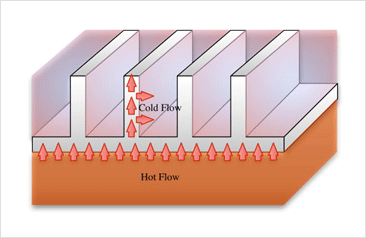

Secondary Surface Heat Exchanger

이미지명

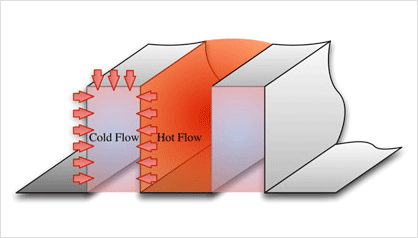

Primary Surface Heat Exchanger

  • 주전열면 열교환기(Primary Surface Heat Exchanger, PSHE)는 당사가 생산하는 corrugated fin 재료를 사용한 대향유동(counter-flow) 방식으로 제작되는 제품입니다. PSHE는 모든 전열면이 주전열면으로 구성되어 열을 즉각 전달하기 때문에 일반적으로 보조전열면을 지닌 열교환기보다 성능과 운전이 효율적입니다.

  • Primary Surface Heat Exchanger (PSHE) is a counterflow heat exchanger made of corrugated fins produced by Innowill. Since all its heat transfer surfaces are primary, it can quickly conduct heat and is more efficient in performance and operation compared to those with secondary heat transfer surfaces.

  • 당사의 주전열면 방식의 열교환기는 작은 수력학적 지름(수mm 범위)을 갖는 유동채널과 모든 전열면이 주전열면으로 구성된 특징 덕분에 최소 부피내에서 매우 큰 열전달 면적을 갖는 열교환기로 개발가능합니다.
    즉, 일반적으로 열교환에 요구되는 총 중량과 부피를 크게 줄여 단위 부피당 열전달 면적을 일반 열교환기의 몇배에 해당하는 값인 2000m2/m2까지 구현 가능하게 해줌으로써 상대적으로 작은 부피와 적은 무게를 갖는것이 가장 큰 특징입니다.

  • With fluid flow channels of small hydraulic diameter (within one-digit millimeter range), all heat transfer surfaces of our PSHE are primary, resulting in very efficient heat exchangers in a compact size. That is, the total weight and volume required for heat exchange is minimized while enlarging the heat transfer area per unit volume up to 2000m2/m2.

  • 당사가 제작하는 PSHE는 일반적으로 75% 이상의 효율을 제공하며, 저압영역에서 낮은 압력손실과 고온의 작동환경을 요구하는 사용처에 적합합니다.

  • Our PSHE generally provides 65 percent better efficiency and is suitable for a high temperature operating environment with low pressure drop in low pressure areas.

  • 주전열면열교환기를 고효율을 특징으로 기존 열교환기 사용이 어려웠던 마이크로 가스터빈, 고체산화물 연료전지, 폐열회수 시스템, 발전시스템에 활용가능합니다.

  • Our PSHE can be installed in micro-gas turbines, solid oxide fuel cells, waste heat recovery systems and other power generation systems that are often unsuitable operating environments for existing heat exchangers.
