Special welding(GTAW / LBW)

이미지명

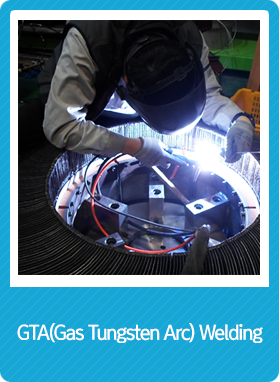

GTA(Gas Tungsten Arc) Welding

이노윌의 열교환기는 0.1mm의 스테인레스 스틸 박판을 성형한 후 이를 적층하는 형태로 제작됩니다. 적층은 레이저 용접이나 GTA 용접(TIG 용접)으로 이루어지는데, 열용량이 매우 작은 박판과 상대적으로 열용량이 큰 부품을 용접하는 것은 매우 어려운 일입니다. 용접 후 강도가 보장되어야 하는 것은 물론 압력을 가했을 때 반드시 기밀 유지가 되어야 하기 때문입니다.

The Innowill heat exchanger is made by forming 0.1mm stainless steel thin plate and stacking it. Additive layers consist of laser welding or GTA welding (TIG welding) which is very difficult to weld with thin plates with relatively large heat capacity. The strength must be ensured after welding, and must be kept confidential when pressure is applied.

이노윌은 오랜 기간 연구와 시행 착오를 통해 열교환기 제작 - 특히 GTA 용접 공정에 필요한 다양한 자동/수동 용접 지그를 고안하였고 이를 활용하는 용접 방안을 개발했습니다. 그 결과로 이노윌은 숙련된 인력과 신뢰성 있는 용접 시스템을 구축하게 되었습니다.

Innowill has devised a variety of automatic and manual welding jigs for heat exchanger production, especially GTA welding process, through research and trial and error for a long time. As a result, Innowill has established a skilled workforce and a reliable welding system.

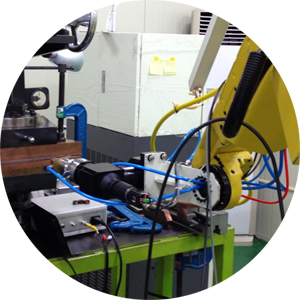

Automated Laser Welding

레이저 용접은 레이저 광선의 높은 에너지 밀도를 응용한 첨단 용접법입니다. 현존하는 용접법 중에서 전자빔 용접을 제외하고 에너지 밀도가 가장 높기 때문에, 고융점 금속의 용접이 가능하고 용접 입열량이 작으므로 열 영향부(HAZ, Heat Affected Zone)도 작습니다. 따라서 수축이나 뒤틀림 등의 열변형이 작고, 신뢰성이 높은 접합이 가능합니다. 이노윌의 열교환기는 스테인레스 스틸과 같은 고강성, 고융점 금속의 얇은 박판을 성형하여 제작되기 때문에 매우 까다롭고 정밀한 용접 공정을 요구하며, 레이저 용접은 이 엄밀한 요구를 훌륭하게 만족시킵니다.

Laser welding is a state-of-the-art welding method that uses high energy density of laser beams. Among the existing welding methods, since the energy density is the highest except for electron beam welding, it is possible to weld the high melting point metal and the welding heat input amount is small, so the heat affected zone (HAZ) is also small. Therefore, thermal deformation such as shrinkage or distortion is small, and highly reliable bonding is possible. Innowill's heat exchanger is manufactured by molding a thin sheet of high-strength, high-melting-point metal such as stainless steel, which requires a very rigid and precise welding process, and laser welding satisfies this exacting requirement.

이노윌에서는 미세한 전열판을 접합하여 제작하는 주전열면 열교환기(PSHE, Primary Surface Heat Exchanger) 및 적층 GTL(Gas To Liquid) 반응기에 적합한 단속적인 용접 공정을 개발하였으며 6축 정밀 로봇과 레이저 시스템을 일체화하여 용접하는 신뢰도 높은 자동화 시스템을 운영하고 있습니다.

Innowill has developed intermittent welding processes suitable for PSHE (Primary Surface Heat Exchanger) and laminated GTL (Gas To Liquid) reactors, which are manufactured by joining fine heat transfer plates. The 6-axis precision robot and the laser system are integrated We operate highly reliable automation systems for welding.

이미지명

LB (Laser Beam) Welding
